Common lisp disassembly through SBCL on RISC-V architecture

Motivation

During my college years, I developed a deep fascination with both RISC-V architecture and Common Lisp programming. RISC-V’s elegant, open instruction set architecture (ISA) made assembly programming more approachable compared to x86, while Common Lisp’s powerful metaprogramming capabilities opened my eyes to new programming paradigms.

Recently, I found myself wanting to explore how these two technologies intersect. Specifically, I was curious to examine how Common Lisp programs compile down to RISC-V assembly through SBCL (Steel Bank Common Lisp). Understanding the generated assembly code could provide insights into both SBCL’s compilation strategies and RISC-V’s instruction set usage in practice.

This writeup documents my journey of setting up an environment for SBCL development on RISC-V architecture, with a focus on being able to examine the assembly output. While primarily a learning exercise, it may prove useful for others interested in Common Lisp implementation details or RISC-V assembly programming.

SBCL Cross-Compiling Terminology

SBCL: A Common Lisp compiler. Project page: https://www.sbcl.org/

Bootstrap: In compiler development, the process of first building a minimal “host” compiler by some special means, then using it to compile the full compiler.

contrib: The extension libraries shipped with SBCL.

Build SBCL on RISC-V

Preparation

According to the official cross-compilation guide, building SBCL requires an existing, older SBCL for bootstrapping. On platforms without a native SBCL binary, you must either:

1. Use a third-party Lisp implementation (e.g., CLISP) to compile SBCL, or

2. Use SBCL on another system/platform to cross-compile for RISC-V, then build contrib natively on the target.

Research showed that option 1 demands matching very specific versions and that natively compiling SBCL under QEMU RISC-V takes 3–4 hours. Therefore, this guide focuses on option 2.

Steps & Pitfalls

1. Set up a RISC-V VM

   Create a working directory, where we’ll download files

   mkdir riscv64-linux
   cd riscv64-linux


   Download pre-built ubuntu image and uncompress

   wget https://cdimage.ubuntu.com/releases/noble/release/ubuntu-24.04.2-preinstalled-server-riscv64.img.xz
   xz -dk ubuntu-24.04.2-preinstalled-server-riscv64.img.xz


   The original image size is not enough for image building, we need enlarge it first.

   qemu-img resize -f raw ubuntu-24.04.2-preinstalled-server-riscv64.img +5G


   Boot RISC-V qemu vm in NAT mode, you’ll most likely get an IP address that starts with 10.0.2.NUM/24.

   qemu-system-riscv64 \
     -machine virt -nographic -m 2048 -smp 4 \
     -kernel /usr/lib/u-boot/qemu-riscv64_smode/uboot.elf \
     -netdev user,id=net0,hostfwd=tcp::2222-:22 \
     -device virtio-net-device,netdev=net0 \
     -drive file=ubuntu-24.04.2-preinstalled-server-riscv64.img,if=virtio,format=raw


   Login with the user ubuntu and the default password ubuntu; you will be asked to choose a new password

   Install and configure ssh on the ubuntu vm.

   sudo apt install ssh
   sudo systemctl enable --now ssh


   Then on your host, test the ssh connection,

   ssh -p 2222 ubuntu@localhost


2. Configure SSH access

   • Interactively generate an ed25519 SSH keypair on the host.

     ssh-keygen


   • Copy the public key into the VM’s /home/ubuntu/.ssh/authorized_keys.

     ssh-copy-id -p 2222 ubuntu@localhost


3. Clone SBCL on the VM

   git clone https://git.code.sf.net/p/sbcl/sbcl /home/ubuntu/sbcl


4. Clone SBCL on the host

   cd riscv64-linux
   git clone https://git.code.sf.net/p/sbcl/sbcl


5. Run the cross-make script on the host

   cd sbcl
   sh cross-make.sh -p 2222 sync ubuntu@localhost /home/ubuntu/sbcl "GNUMAKE=gmake SBCL_ARCH=riscv64 CFLAGS='-fsigned-char'"


   • sync ensures the VM’s and host’s SBCL source are identical (it uses the VM’s repo HEAD).
   • The SBCL_ARCH and CFLAGS variables set the target architecture and compiler flags.

   You might get an error about GNU Make not being found. To fix this, install the build-essential package on the guest ubuntu vm

   sudo apt install build-essential


   Re-run the cross-make.sh script again:

   sh cross-make.sh -p 2222 sync ubuntu@localhost /home/ubuntu/sbcl "GNUMAKE=gmake SBCL_ARCH=riscv64 CFLAGS='-fsigned-char'"


   And you will get some output that looks similar to this with the error: “No such file or directory”

   + ./generate-version.sh
   + ssh -p 2222 ubuntu@localhost cd /home/ubuntu/sbcl ; git checkout 8c0820b1ac2f20cc491b8e83ae20604f8da3b488 && GNUMAKE=gmake SBCL_ARCH=riscv64 CFLAGS='-fsigned-char' sh make-config.sh && mv version.lisp-expr remote-version.lisp-expr
   HEAD is now at 8c0820b1a Slightly less branching in EQUAL.
   rm -f *~ *.bak *.orig \#*\# .\#* texput.log *.fasl
   rm -rf sbcl asdf "docstrings/"
   rm -f  sbcl.html asdf.html
   rm -f contrib-docs.texi-temp
   rm -f package-locks.texi-temp
   rm -f variables.texinfo
   rm -f sbcl.ps asdf.ps sbcl.pdf asdf.pdf html-stamp tempfiles-stamp
   rm -f asdf.aux asdf.cp asdf.cps asdf.fn asdf.fns asdf.ky asdf.log asdf.pg asdf.toc asdf.tp asdf.tps asdf.vr asdf.vrs sbcl.aux sbcl.cp sbcl.cps sbcl.fn sbcl.fns sbcl.ky sbcl.log sbcl.pg sbcl.toc sbcl.tp sbcl.tps sbcl.vr sbcl.vrs
   rm -f sbcl.info sbcl.info-* asdf.info
   rm -rf *.include *.info *.pdf *~ *.cp *.fn *.ky *.log *.pg *.toc \
           *.tp *.vr *.aux *.eps *.png *.dvi *.ps *.txt *.fns \
           html-stamp sbcl-internals/
   //entering make-config.sh
   //ensuring the existence of output/ directory
   //guessing default target CPU architecture from host architecture
   //setting up CPU-architecture-dependent information
   sbcl_arch="riscv"
   //initializing /home/ubuntu/sbcl/local-target-features.lisp-expr
   //setting up OS-dependent information
   gmake: Entering directory '/home/ubuntu/sbcl/tools-for-build'
   cc -I../src/runtime -fsigned-char    determine-endianness.c  -ldl -Wl,-no-as-needed -o determine-endianness
   gmake: Leaving directory '/home/ubuntu/sbcl/tools-for-build'
   //finishing /home/ubuntu/sbcl/local-target-features.lisp-expr
   + scp -P 2222 ubuntu@localhost:/home/ubuntu/sbcl/{remote-version.lisp-expr,local-target-features.lisp-expr,output/build-id.inc} .
   scp: /home/ubuntu/sbcl/{remote-version.lisp-expr,local-target-features.lisp-expr,output/build-id.inc}: No such file or directory


   Investigation shows:

   scp -P 2222 ubuntu@localhost:/home/ubuntu/sbcl/{remote-version.lisp-expr,local-target-features.lisp-expr,output/build-id.inc} .


   is passed literally, and you end up looking for a file called /home/ubuntu/sbcl/{remote-version.lisp-expr,local-target-features.lisp-expr,output/build-id.inc}

6. Resolve the build issue:

   Re-run the cros-make script using bash so that you get brace expansion:

   bash cross-make.sh -p 2222 sync ubuntu@localhost /home/ubuntu/sbcl "GNUMAKE=gmake SBCL_ARCH=riscv64 CFLAGS='-fsigned-char'"


   You will most likely run into the missing output directory issue after fixing brace expansion issue.

   You’ll see:

   + scp -P 2222 ubuntu@localhost:/home/ubuntu/sbcl/remote-version.lisp-expr ubuntu@localhost:/home/ubuntu/sbcl/local-target-features.lisp-expr ubuntu@localhost:/home/ubuntu/sbcl/output/build-id.inc .
   remote-version.lisp-expr                                                                                                   100%  189   117.8KB/s   00:00
   local-target-features.lisp-expr                                                                                            100%  496   258.7KB/s   00:00
   build-id.inc                                                                                                               100%   36    18.6KB/s   00:00
   + mv build-id.inc output
   + sh make-host-1.sh
   //entering make-host-1.sh
   make-host-1.sh: 24: .: cannot open output/build-config: No such file


7. Resolve the missing output directory issue.

   Fix:

   wget https://raw.githubusercontent.com/fedora-riscv/sbcl-build-docs/refs/heads/main/sbcl-cross-make.patch
   git apply sbcl-cross-make.patch
   rm -rf output
   mkdir output


8. Re-run the cross-make script

   bash cross-make.sh -p 2222 sync ubuntu@localhost /home/ubuntu/sbcl "GNUMAKE=gmake SBCL_ARCH=riscv64 CFLAGS='-fsigned-char'"


9. Resolve sbcl: not found error

   The “sbcl: not found” is coming from your host (the Kali VM), not the RISC-V target. The make-host-1.sh step needs a working SBCL on the machine where you invoked cross-make.sh so it can build the C runtime and do the first “genesis” pass.

   • Install SBCL on your host (or otherwise make a host‐side SBCL available in your PATH):

     sudo apt install sbcl


   This gives you the “stage-0” SBCL compiler that the cross-make process uses to build the stage-1 compiler for RISC-V.

   Re-run the cross-make script

   bash cross-make.sh -p 2222 sync ubuntu@localhost /home/ubuntu/sbcl "GNUMAKE=gmake SBCL_ARCH=riscv64 CFLAGS='-fsigned-char'"


   Once the host build finishes, you’ll have a stage-1 SBCL compiler in the VM’s /home/ubuntu/sbcl directory.

10. Build the contrib libraries on the ubuntu VM

    cd /home/ubuntu/sbcl
    sh make-target-contrib.sh


    You’ll see a flood of binary gibberish on your terminal.

11. Work around the broken run-program output parameter

    Extensive debugging revealed that SBCL’s run-program function (used to concatenate files via cat) ignores its :output argument and always writes to stdout. This pollutes the terminal.

12. Apply the make-contrib patch

    wget https://raw.githubusercontent.com/fedora-riscv/sbcl-build-docs/refs/heads/main/sbcl-make-contrib.patch
    git apply sbcl-make-contrib.patch


13. Create the missing sbcl-home directory

    cd /home/ubuntu/sbcl
    mkdir -p obj/sbcl-home


14. Clean and rebuild

    Before each build, run:

    ./clean.sh


    Then repeat steps 5–13. You should now produce a preliminary SBCL binary and the contrib libraries.

15. Prepare for full bootstrap

    Run the following on the ubuntu vm

    cp -r /home/ubuntu/sbcl /home/ubuntu/sbcl-new
    cd /home/ubuntu/sbcl-new
    sh clean.sh
    mkdir -p obj/sbcl-home
    SBCL_ARCH=riscv64 CFLAGS="-fsigned-char" \
      sh make.sh --xc-host='/home/ubuntu/sbcl/run-sbcl.sh' --arch="riscv64"


    If you build and are able to run make.sh on SBCL, you will get the following message:

    The build seems to have finished successfully, including 19
    contributed modules. If you would like to run more extensive tests on
    the new SBCL, you can try:

      cd ./tests && sh ./run-tests.sh

    To build documentation:

      cd ./doc/manual && make

    To install SBCL (more information in INSTALL):

      sh install.sh

    //build started:  Tue May  6 16:41:55 UTC 2025
    //build finished: Tue May  6 17:08:55 UTC 2025


    To install sbcl run sh install.sh, you might need to run sudo sh install.sh if you are running as a regular user.

Disassembling Common lisp code

Here are two classic Common Lisp implementations of the Fibonacci function:

Simple recursive version

;; fib-recursive: exponential time
(defun fib-recursive (n)
  "Return the Nth Fibonacci number (0-indexed) recursively."
  (if (<= n 1)
      n
      (+ (fib-recursive (- n 1))
         (fib-recursive (- n 2)))))

Iterative version using LOOP

;; fib-iterative: linear time, constant space
(defun fib-iterative (n)
  "Returns the Nth Fibonacci number (0-indexed) in O(N) time."
  (cond ((< n 0) (error "Input must be a non-negative integer"))
        ((= n 0) 0)
        ((= n 1) 1)
        (t (let ((a 0)
                 (b 1))
             (loop for i from 2 to n
                   do (let ((temp (+ a b)))
                        (setf a b)
                        (setf b temp)))
             b))))

Usage

* (fib-recursive 10)  ; => 55
* (fib-iterative 10)  ; => 55

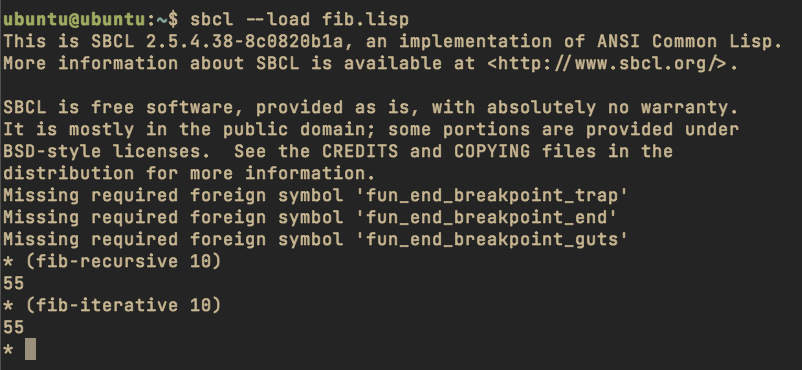

You can put these definitions in a file, say fib.lisp, and load them into SBCL via:

sbcl --load fib.lisp

Then call (fib-iterative N) or (fib-recursive N) at the REPL.

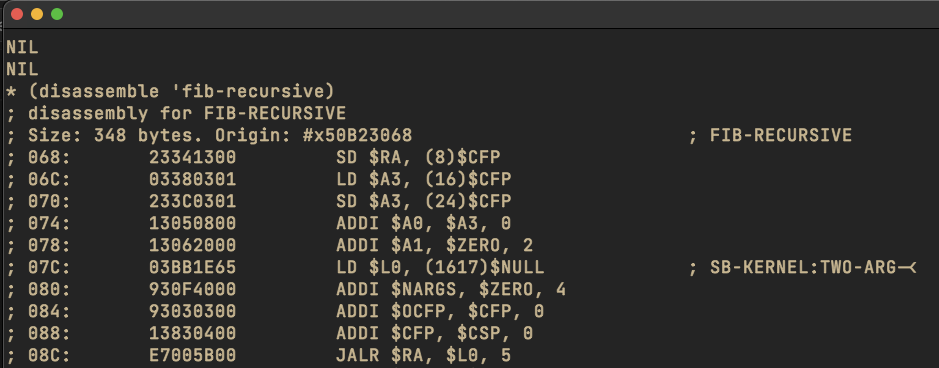

In SBCL you can use the built-in disassembler at the REPL. Just make sure your function is compiled, then call disassemble on it. For example, assuming you’ve already defined the two versions:

(compile 'fib-recursive)
(compile 'fib-iterative)

;; now disassemble them
(disassemble 'fib-recursive)
(disassemble 'fib-iterative)
